A lid that almost closes, a peg that stops halfway, a tiny accessory that rattles instead of clicking into place—fit problems are frustrating because the model can look perfect on screen. The useful shift is to treat fit as something to test, not something a single dimension can promise.
Fit is a relationship, not one magic number
Two modeled surfaces need room to work together, but the right amount depends on the printer, material, orientation, layer height, calibration, and the shape of the connection. A snug decorative insert and a part meant to slide freely are asking for different kinds of fit. That is why a clearance copied from another project may not behave the same way on your machine.
Look at the first layer before redesigning everything
If the problem is concentrated at the bottom edge, check for a slight first-layer flare, often called “elephant foot.” Prusa explains that the first layer is pressed against the print bed and can become a little wider than intended—enough to matter when parts need precise dimensions or tight tolerances. Its slicer compensation shrinks the first layer to account for that flare, but an excessive setting can create its own problems.
Before changing the whole model, compare the bottom edge with the walls above it. If only the base binds, review first-layer setup and the compensation options documented for your printer and slicer.
Print the smallest useful test

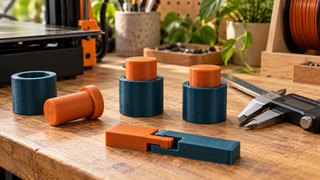

Instead of committing to the entire project, isolate the connection: a short peg and socket, a thin ring, a snap tab, or a small section of a lid. Print that sample with the same material, orientation, layer height, and profile you plan to use for the finished piece.
- Label each test so you can tell revisions apart.
- Change one variable at a time—such as the modeled clearance or a first-layer setting.
- Test the motion you actually need: press, slide, twist, or snap.
- Keep the successful sample or write its settings in the project notes.
A five-minute test piece is not wasted material. It is a small rehearsal that can prevent a full reprint and make the final gift or accessory feel considered in the hand.
Keep the result with the project
Record the material, profile, orientation, and the change that produced the right feel. If you switch filament or move the part to a different printer, run the small test again. What worked once is a useful starting point, not a permanent law.
For load-bearing, heat-exposed, medical, vehicle, electrical, or other safety-critical parts, a casual fit test is not enough; use appropriate engineering review, materials, and validation.
Source reviewed
Technical guidance was checked on October 12, 2026 against Prusa Research’s official Elephant foot compensation documentation.
